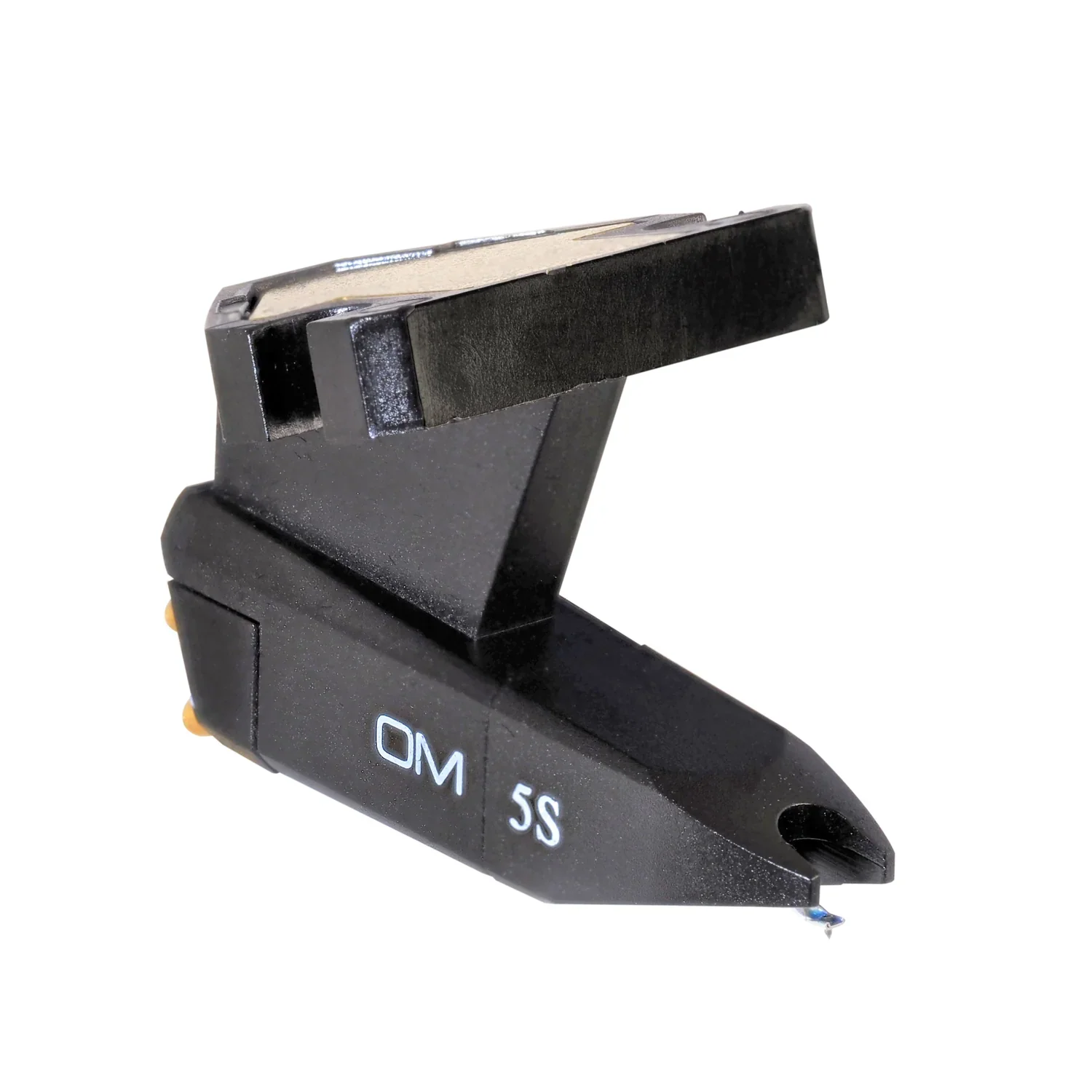

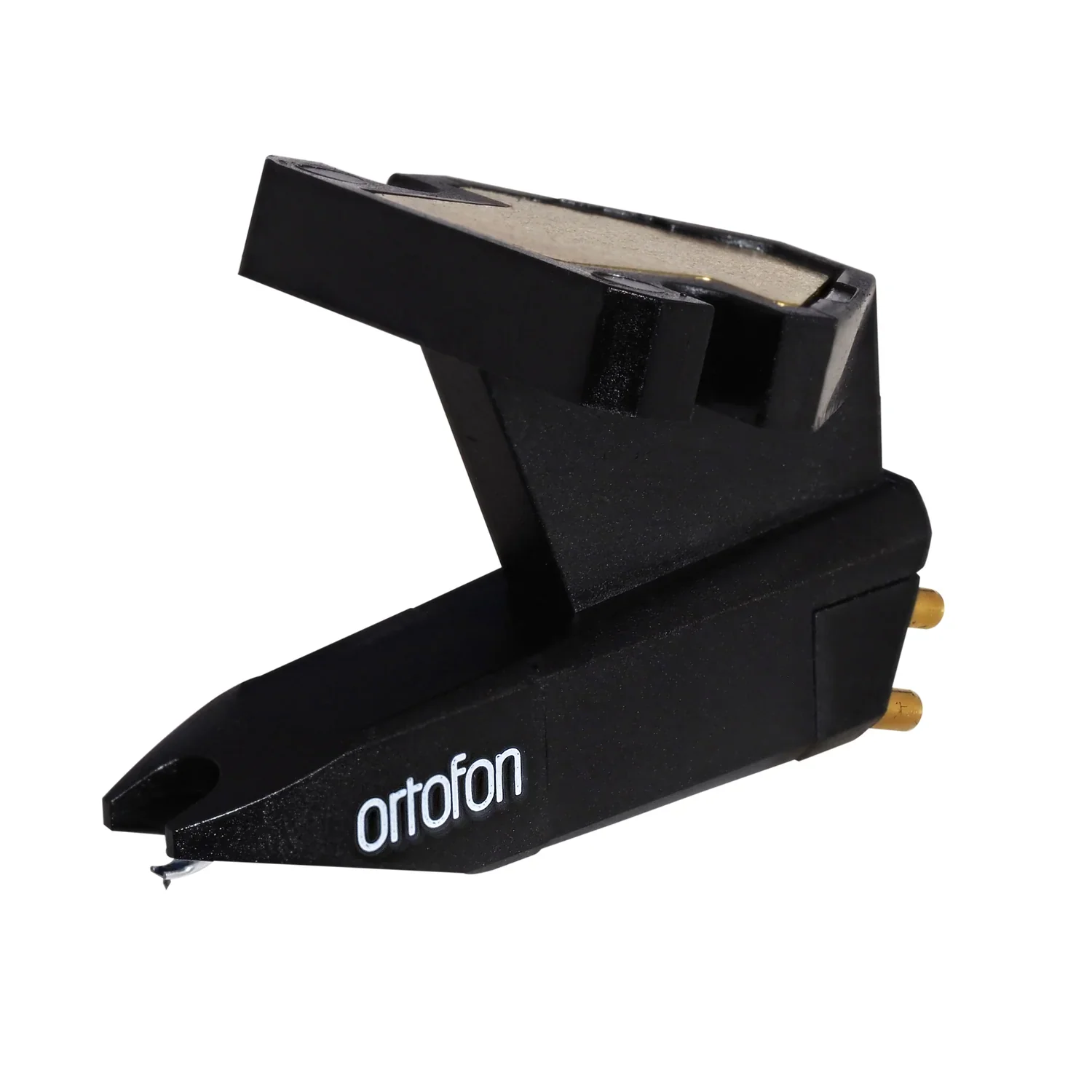

ORTOFON OM 5S (OM5S) Moving Magnet Cartridge For General Purpose Application

> The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records.

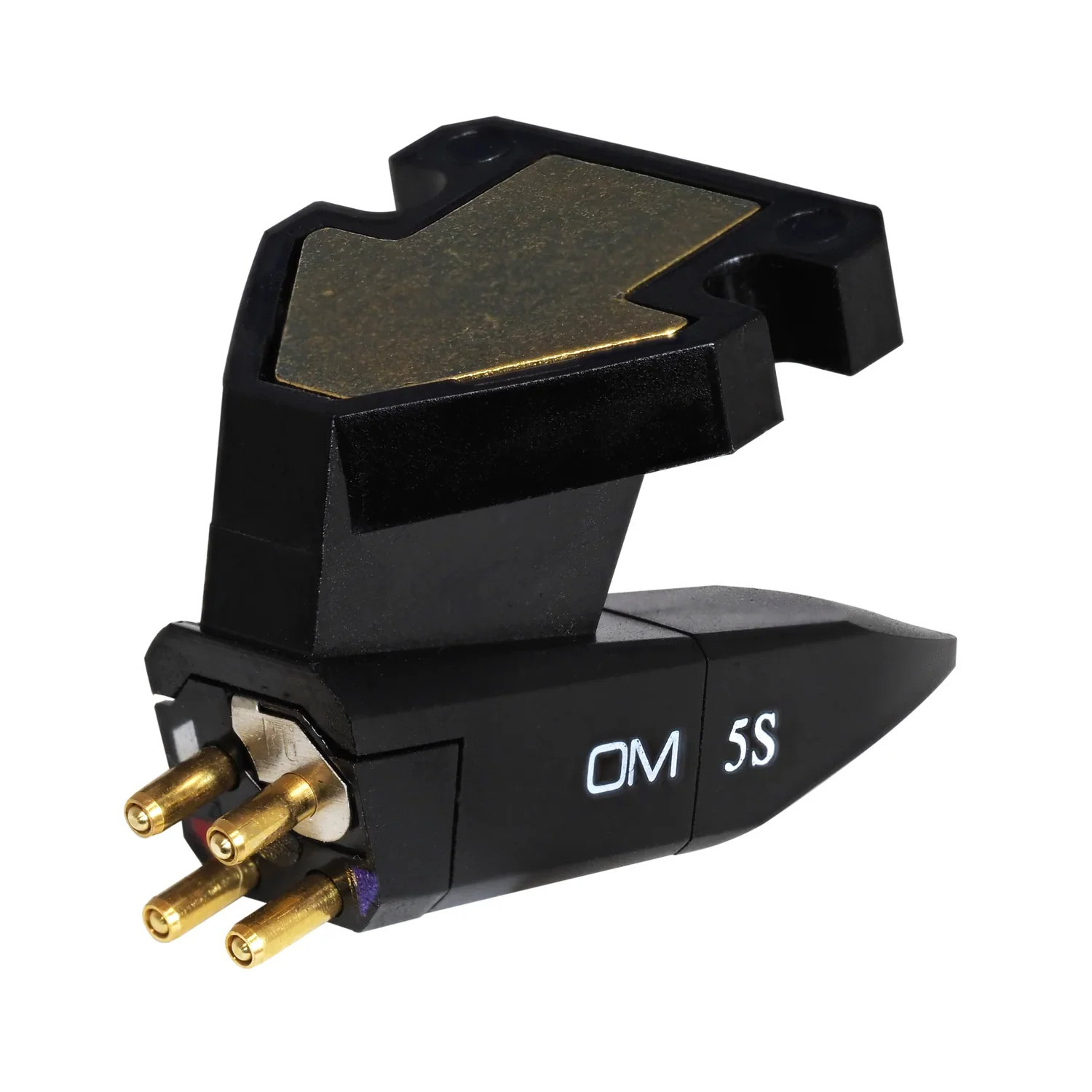

> If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

> If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.

--
Descriptions:

> A great match for your home system
> Styli types and interchangeability
> By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget.

> In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

> Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

> The OM 5 Series
> The Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

> The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
> The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
> The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
--
Specifications:

> Channel balance at 1 kHz: 2 dB

> Output voltage at 1 kHz, 5cm/sec: 4.5 mV

> Channel seperation at 1 kHz: 20 dB

> Channel seperation at 15 kHz: 12 dB

> Frequency response 20 Hz - 20 kHz: 20-20.000 Hz

> Tracking ability at 315Hz at recommended tracking force: 60 µm

> Compliance, dynamic, lateral: 20 µm/mN

> Stylus type: Spherical

> Stylus tip radius: R 18 µm

> Tracking force range: 1.5-2.0 g (15-20 mN)

> Tracking force, recommended: 1.75 g (17.5 mN)

> Tracking angle: 20°

> Internal impedance, DC resistance: 750 Ohm

> Cartridge colour: Black/Black

> Cartridge weight: incl. extra weight 5 g, excl. extra weight 2.5 g

> Recommended load resistance: 47 kOhm

> Internal inductance: 450 mH

> Recommended load capacitance: 200-500 pF

> Replacement stylus: Stylus 5S

--
