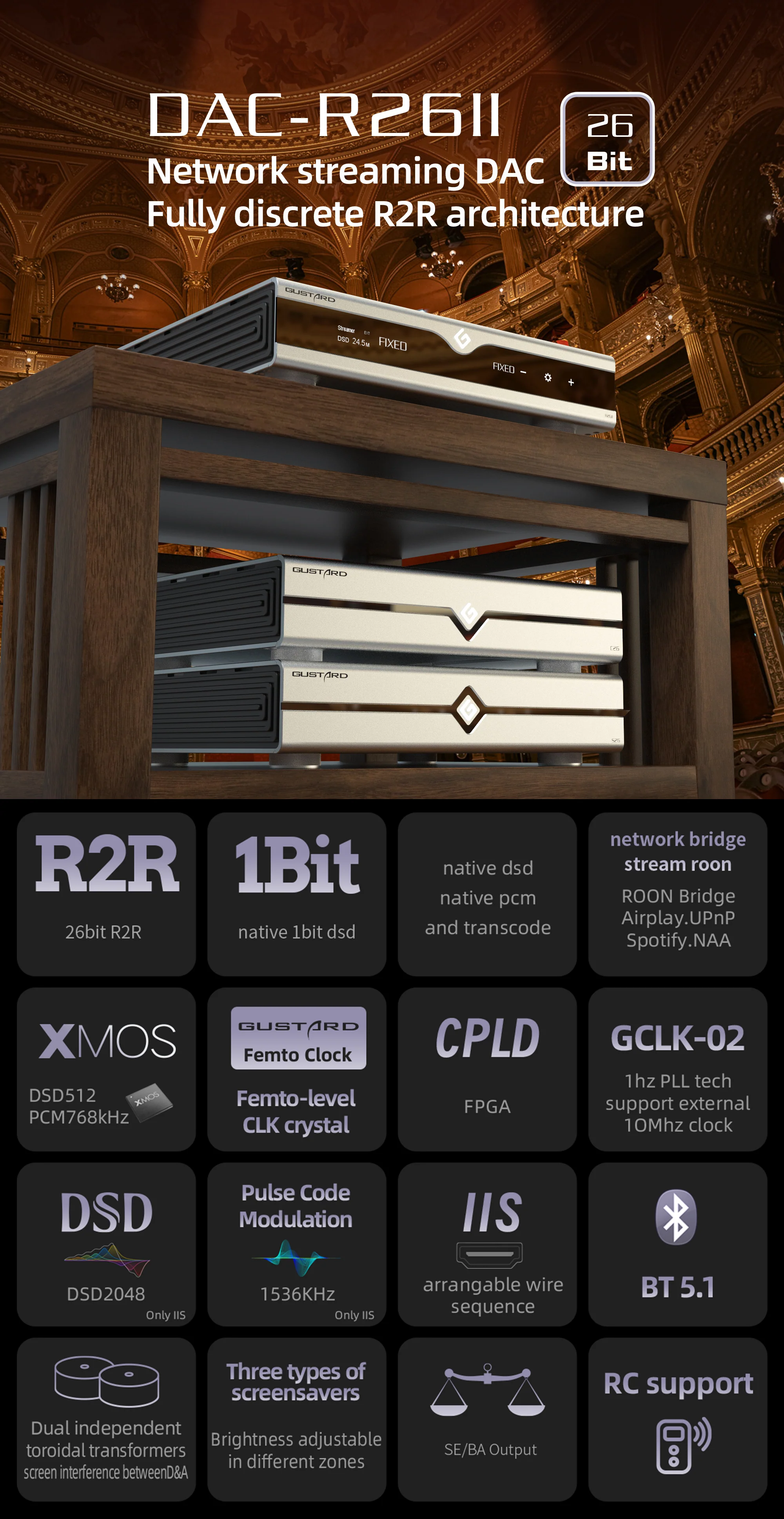

Experience high-fidelity audio with the state-of-the-art GUSTARD DAC-R26II, featuring a fully discrete R2R architecture.
KEY BENEFITS:
- Fully discrete R2R architecture for superior sound quality.
- Supports high-resolution audio formats including DSD512 and PCM768K.
- Integrated network bridge with Roon, AirPlay, UPnP, and Spotify compatibility.
--
DESCRIPTIONS:

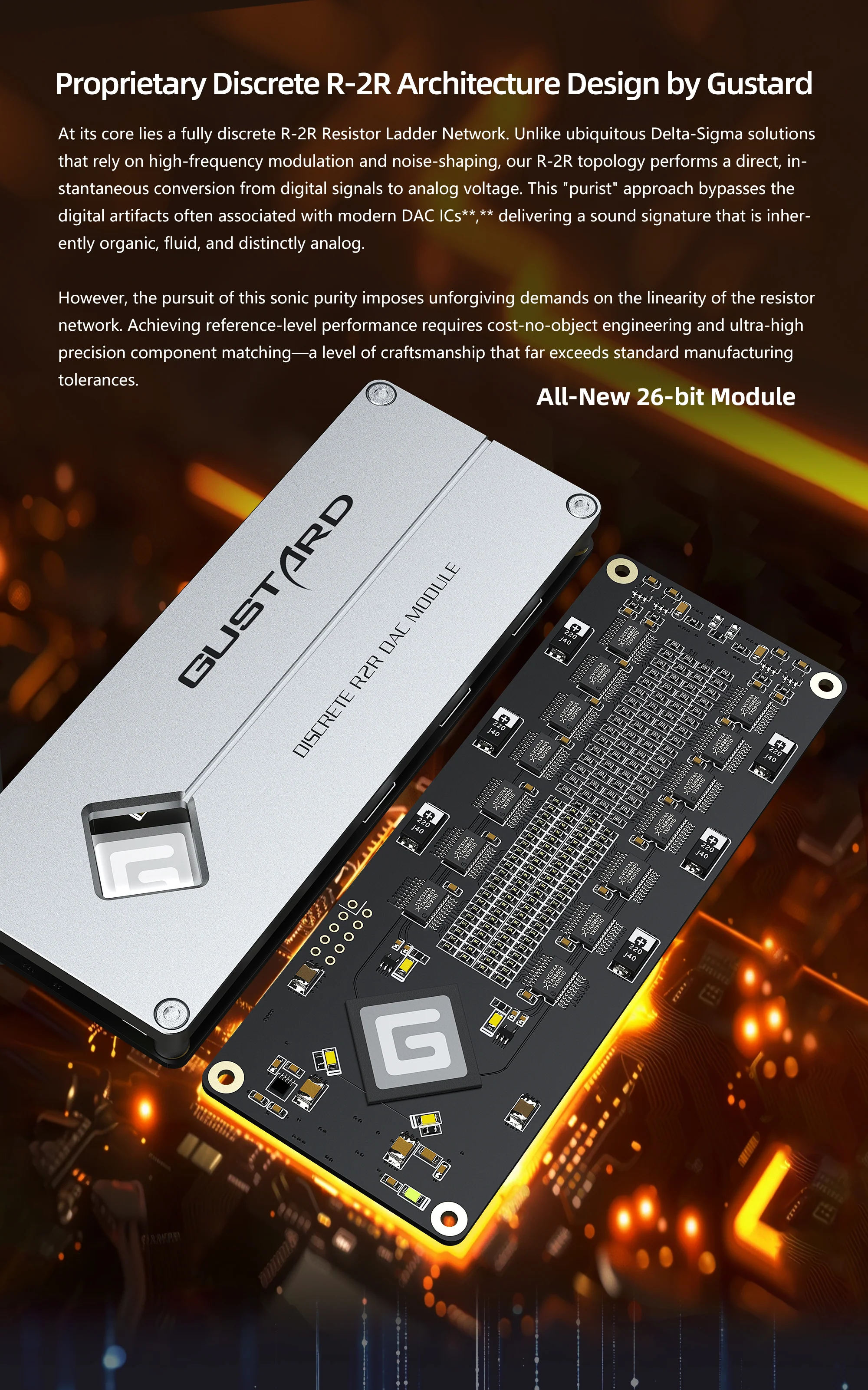

The GUSTARD DAC-R26II is engineered for serious audiophiles who demand uncompromising audio performance. At its core lies a fully discrete R-2R resistor ladder network, designed to convert digital signals to analog voltage with maximum fidelity. This innovative topology effectively eliminates the digital glare often present in modern DACs, delivering a sound that feels both fluid and authentically analog. Built with high-quality components, the DAC-R26II ensures that it can reproduce even the most complex musical passages without distortion.

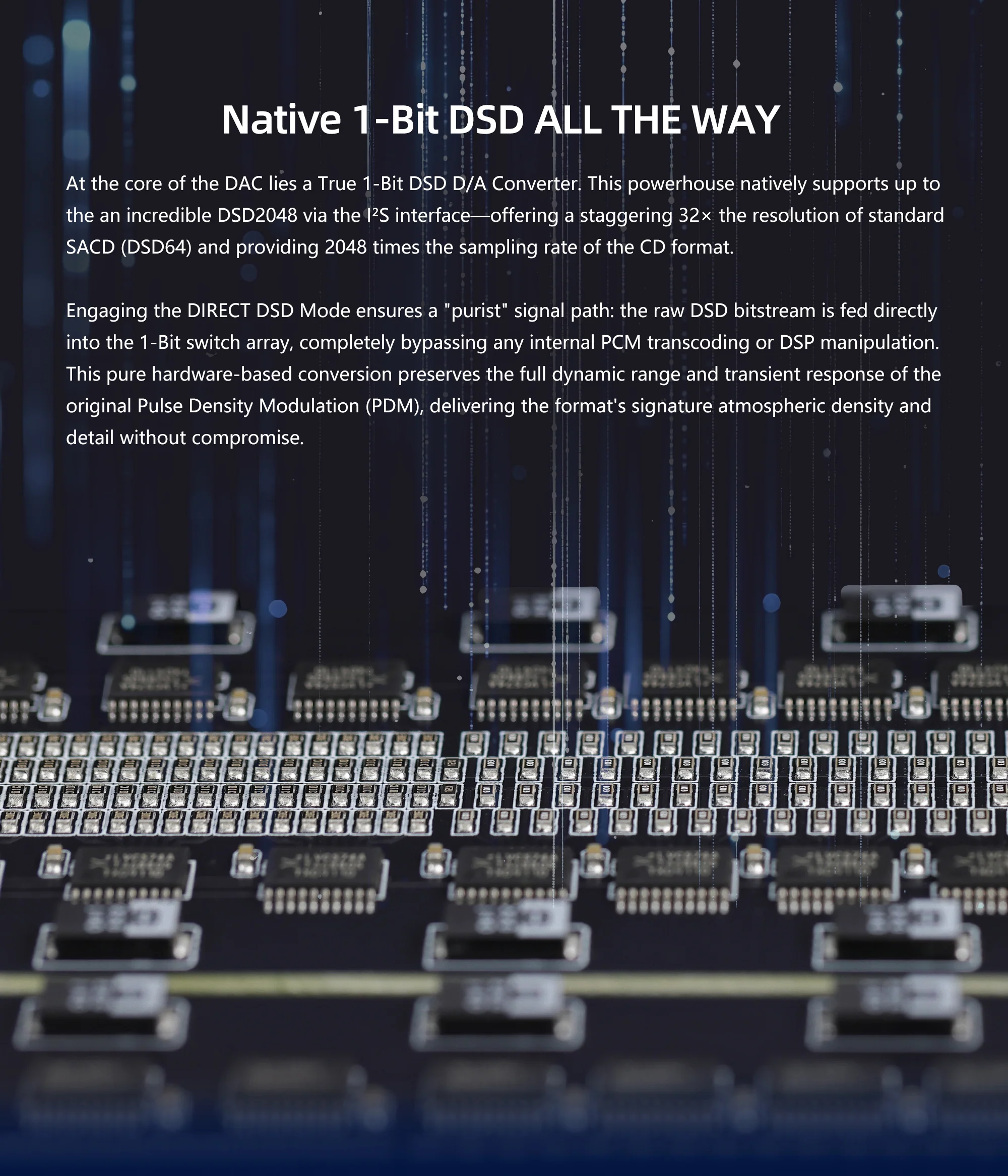

Additionally, the DAC-R26II supports a wide range of high-resolution audio formats. It natively supports DSD up to DSD512 and PCM up to 768kHz, allowing you to enjoy your favorite tracks with remarkable detail and clarity. The USB interface utilizes the advanced XMOS XU216 chip for seamless connectivity, ensuring minimal latency and outstanding audio quality whether streaming or playing directly from the device.
The DAC also integrates a robust network bridge system in collaboration with CelAudio, offering convenient access to popular streaming services such as Roon, and AirPlay. With low data latency and enhanced transient response, this device excels in delivering bit-perfect audio playback. The user-friendly interface features smooth touch controls, making it simple to navigate through settings and options.
Important Update: To ensure the best long-term experience, please be aware that Spotify Connect support may no longer be available starting in 2026. We recommend using Roon, AirPlay, or UPnP for continued high-fidelity wireless streaming.
--
SPECIFICATIONS:
Digital Input:
COAX/AES/OPT input format supp: PCM 16-24bit/44.1-192kHz; DSD DOP64
USB/Streamer input format supp: PCM 16-32bit/44.1-768kHz; DSD DOP64-DOP256; NATIVE DSD: DSD64-DSD512
IIS input format supp: PCM 16-32bit/44.1-1536kHz; NATIVE DSD: DSD64-DSD2048 (DSD2048: @ DSD direct mode)
BT 5.1 input format supp: PCM LDAC, AAC, SBC, APTX, APTX LL, APTX HD; LDAC HiRes audio support 96K
10M input interface (BNC): input impedance 50 Ohm, 0dBm-20dBm, CMOS square wave outputs of 0.2V-3.3V
Analog Output:
Frequency Response: 20-20kHz /+/-0.2dB OS mode
Dynamic Range: >117dB
Signal-to-Noise Ratio: >122dB
Channel Crosstalk: <-134dB @ 1kHz
THD+N: <=0.003% @1kHz
IMD: ≈0.008% @ 0dbfs
RCA Output Level: 2.5Vrms (VOLUME FIXED)
RCA Output Impedance: 100Ω
XLR Output Level: 5.0Vrms (VOLUME FIXED)
XLR Output Impedance: 100Ω
Miscellaneous Specifications:
AC Power: AC115V/230V 50/60Hz;
Power Consumption: <20W;
Chassis Dimensions: 330*260*65 (No pins included 10mm);
Weight: 5.5KG;
WARRANTY / SUPPORT:
1 Year Singapore Warranty
SEO KEYWORDS:
GUSTARD DAC-R26II, network streaming DAC, R2R architecture DAC, high-resolution audio DAC, DSD support DAC, audiophile DAC, streaming audio device, GUSTARD audio products.
ℹ️ Please Note:
This product description is generated with the assistance of AI using the provided product materials. While we strive for accuracy, we recommend reviewing the details or contacting us if you need any clarification.
--
