Fosi Audio ZP3
Preamplifier

> Triple Source Inputs: 3 In / 3 Out
> HPF Adjustment
> 12V Trigger In/Out
> Perfect combination with ZD3 and ZA3

--
Descriptions:

Home Audio Control Hub: Features 3-in-3-out options for connecting up to three audio sources. Includes a remote control for one-touch input switching and volume adjustment—making it easy to manage your home audio system with freedom

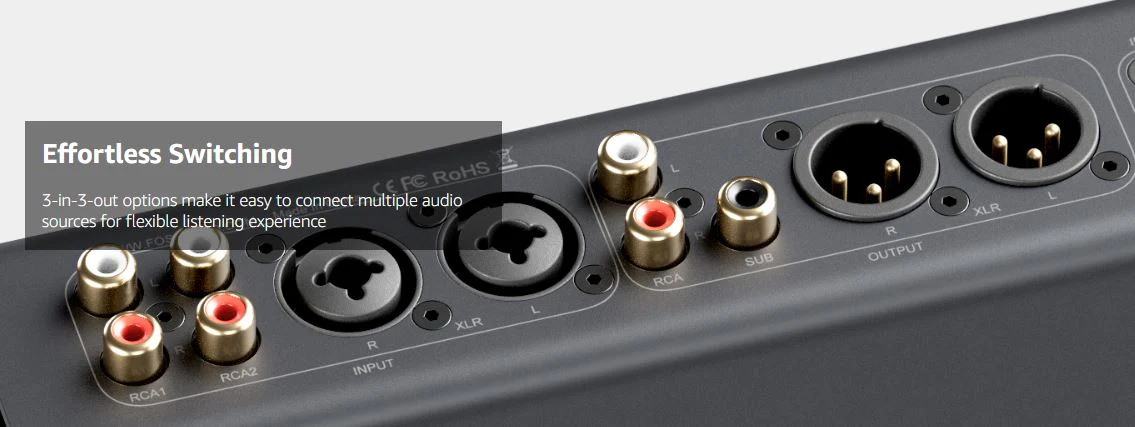

Versatile Connectivity: Equipped with RCA1/RCA2/XLR inputs and RCA/XLR/Sub-Out outputs, the ZP3 integrates multiple devices with ease. Supports balanced XLR in/out for cleaner sound, plus RCA/XLR signal conversion for maximum compatibility

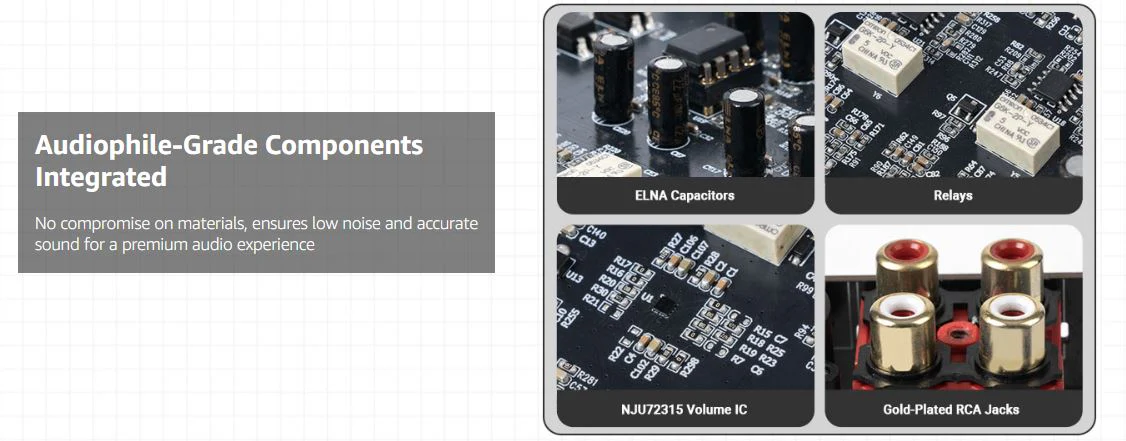

Audiophile-Grade Components: Built with premium parts including ELNA capacitors,  NJR NJU72315 volume IC, and gold-plated RCA jacks. These components reduce noise and distortion, delivering exceptional clarity and high-fidelity performance

Adjustable High-Pass Filter: Three-level HPF settings filter low-frequency signals from the RCA/XLR outputs, sending only mids and highs to main speakers while routing bass through the SUB-OUT—enhancing clarity, detail, and overall sound balance

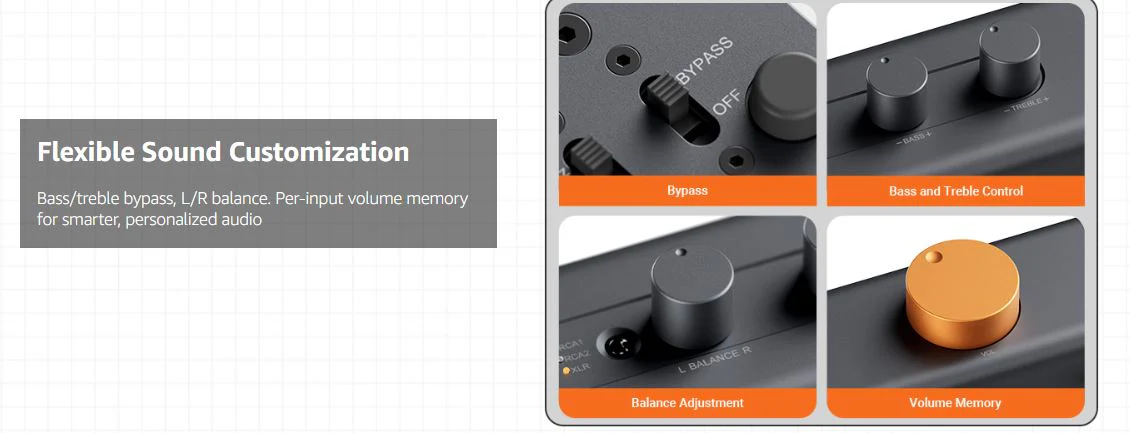

Flexible Sound Customization: Includes bass/treble control with bypass function, and L/R balance knobs for personalized adjustment. Volume memory remembers settings for each input source—giving you a smarter, more convenient audio experience tailored to your taste

--
Specifications:

Channel: 2.0
Input: RCA x2, XLR
Output: RCA, XLR, SUB
Bass and Treble Control Range: Treble: ±6dB，Bass: ±12dB
Frequency Response
XLR/RCA:
20Hz-20kHz (±0.2dB)
80Hz-20kHz (±0.2dB)
120Hz-20kHz (±0.2dB)
SUB: 20Hz-200Hz (±0.2dB)
Input Voltage Range: AC 110-240V

Balanced Output (XLR)
SNR: ≥ 112 dB
Dynamic Range: ≥ 112 dB
THD+N: ≤ 0.0007%
Noise Floor: ≤ 6μV

Single-Ended Output (RCA)
SNR: ≥ 115 dB
Dynamic Range: ≥ 115 dB
THD+N: ≤ 0.0008%
Noise Floor: ≤ 4μV

--
