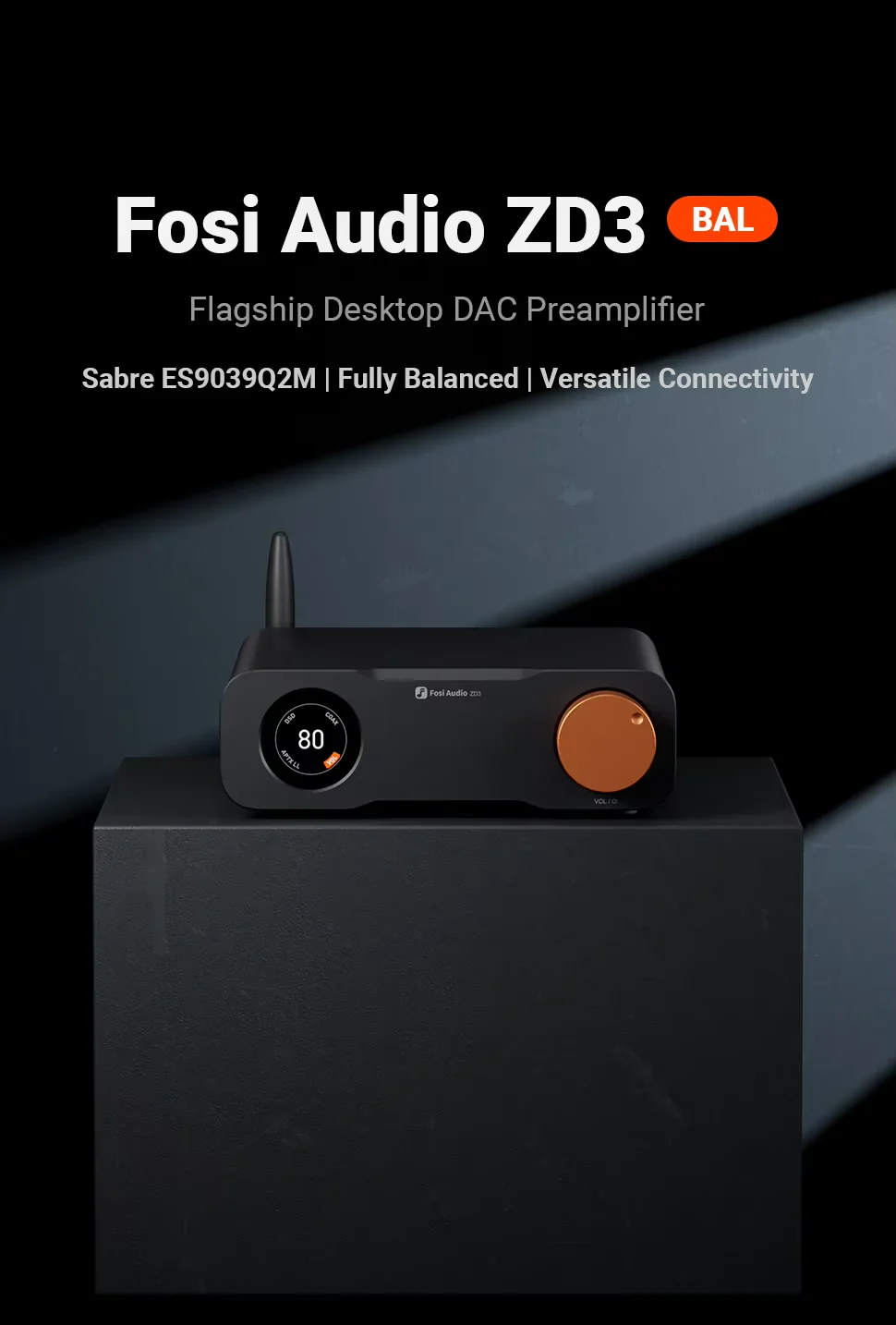

FOSI AUDIO ZD3
Bluetooth Desktop DAC Preamp ARC Input, ES9039Q2M Fully Balanced Digital for Home Stereo Amplifier with Remote

> ES9039Q2M DAC, XMOS XU316, QCC3031, LME49720
> Swapple Op-Amps
> Five Input Modes: Bluetooth 5.0, HDMI, USB, Optical, Coaxial
> Bluetooth Lossless: aptX HD, aptX, SBC, AAC
> RCA Output, XLR Output
> Remote Control
> OLED Display
> Multiple LDO Regulators

--
Descriptions:

> Flagship Desktop DAC
> A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio's first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound

> Premium Chipset

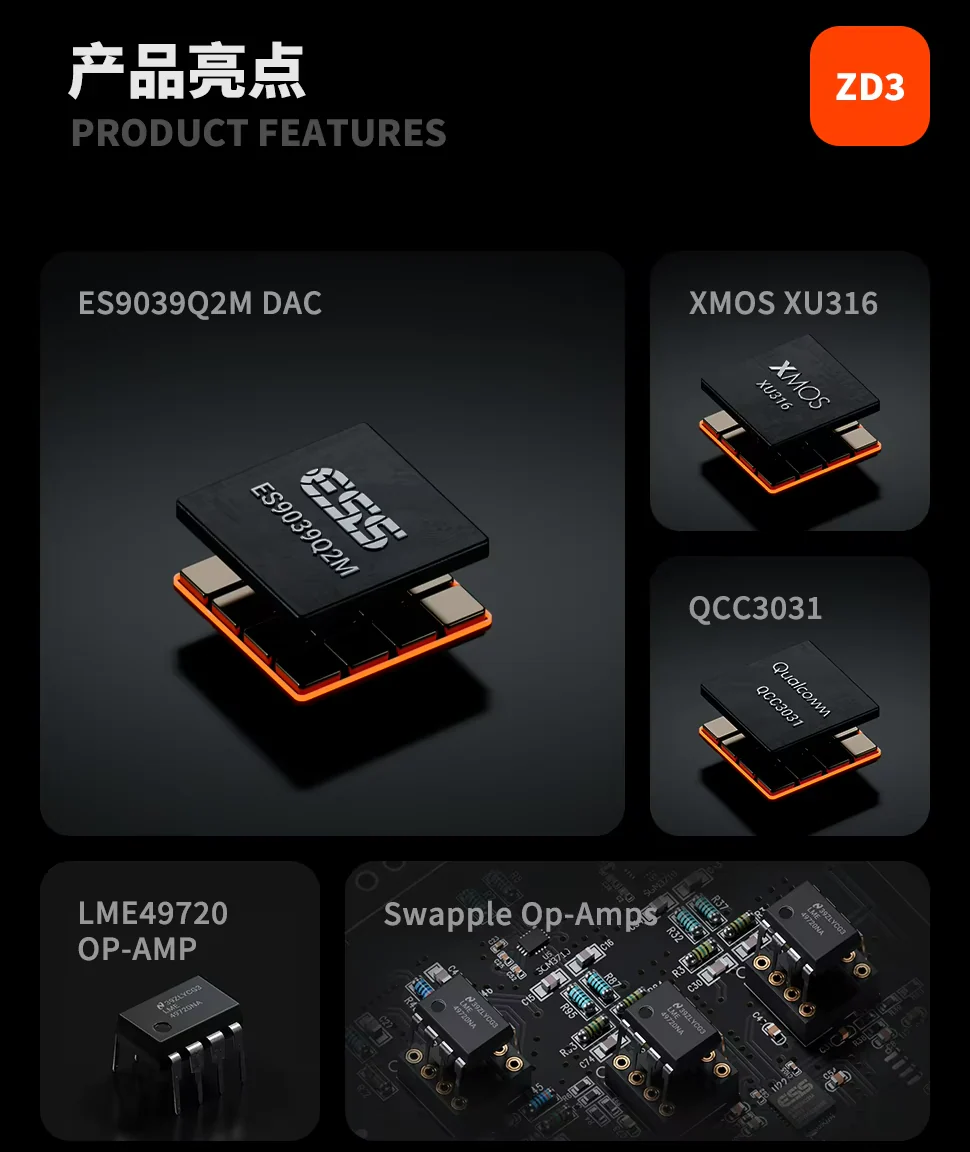

> The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

> Versatile & Flexible
> The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios.

> Ease of Use
> The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.

> Family Design
> Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.

--
Specifications:

> Chipset: XMOS XU316+ESS 9039Q2M+QCC3031+LME49720
> Maximum Sampling Rate: (USB:PCM 32bit/768kHz; DSD512) (OPT/COA: PCM 24bit/192kHz) (HDMI: PCM 24bit/192kHz) (Bluetooth: PCM 24bit/48kHz)
> Output Level: (XLR: 5Vrms) (RCA: 2.5Vrms)
> Input: USB, HDMI (ARC), Coaxial, Optical, Bluetooth
> Output: XLR, RCA
> SNR: 126dB
> THD+N: <0.00008%
> Dynamic Range: 126dB
> Noise Floor: ≤2μV
> Frequency Response: 20Hz-20kHz (±0.1dB)
> Bluetooth Version: 5.0
> Bluetooth Connection Distance: ≥13m
> Bluetooth Transmission Audio Format: SBC, AAC, aptX, aptX HD
> Input Voltage and Current: DC 12V 1.5A
> USB Compatible Devices: Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to subsequent instructions for details) Mac OS X, Linux (No driver required)

--
Package include:

> ZD3*1
> USB-A to USB-B Cable*1
> 12V Power Adapter*1
> Bluetooth Antenna*1
> 12V Trigger Cable*1
> Infrared Remote*1
> User Manual*1

--
