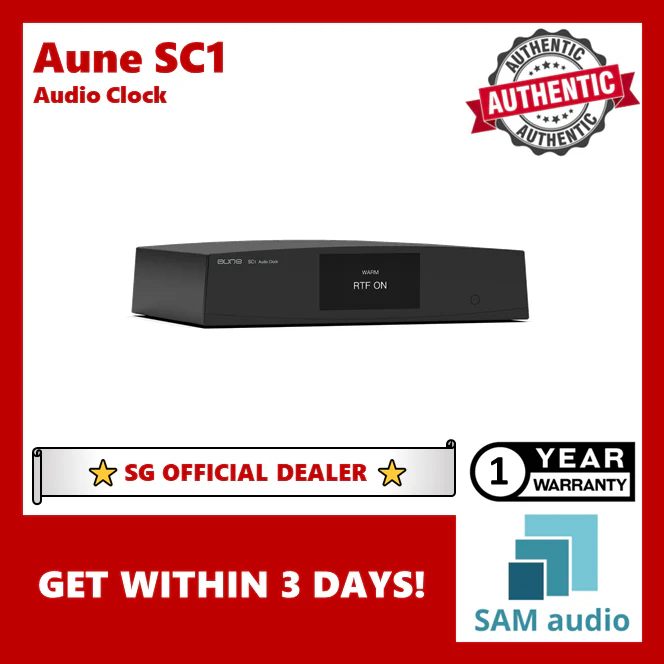

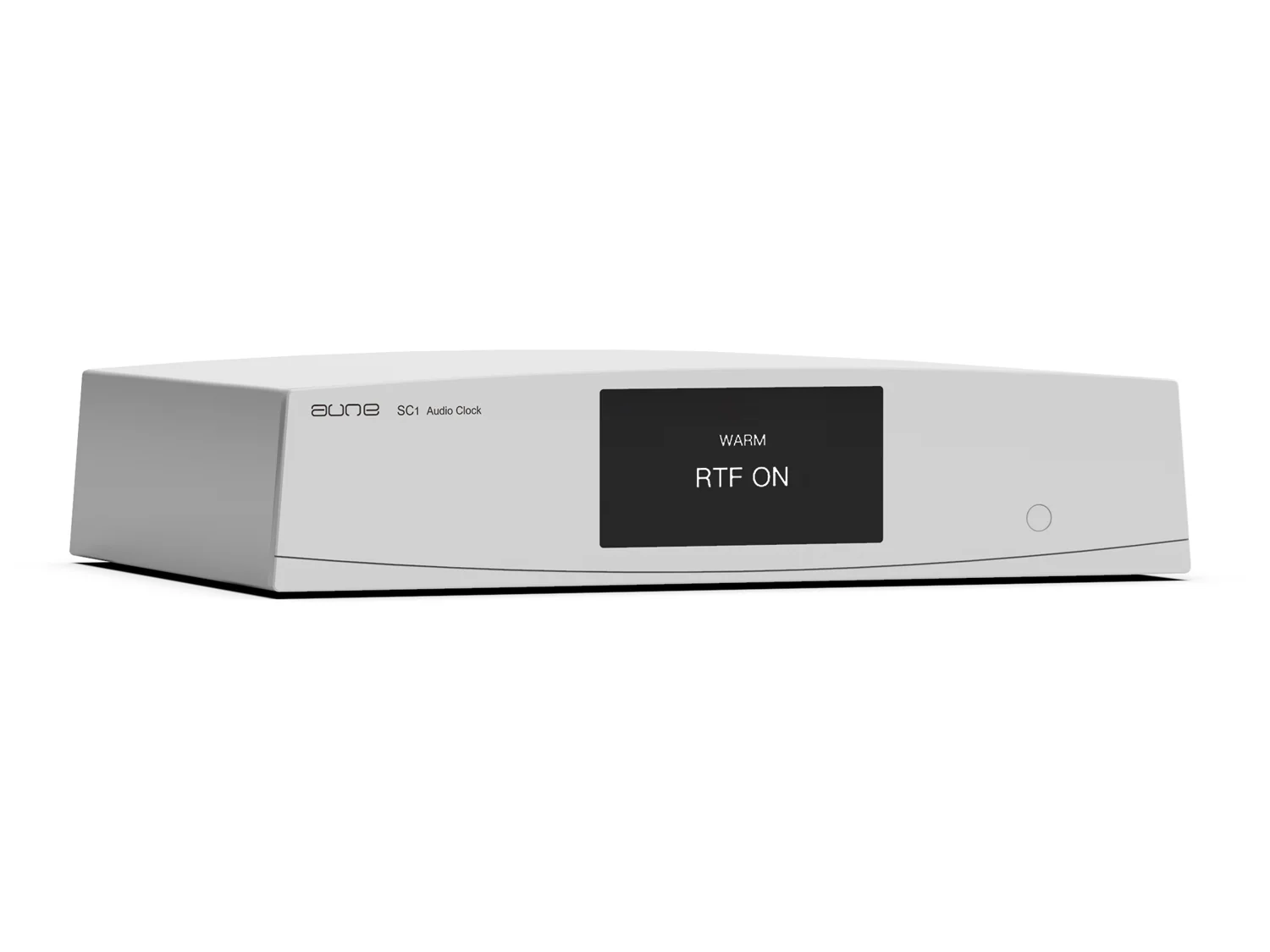

Aune SC1 Audio Clock
> The Reliable Conductor Of Your System
> Custom Oscillator - Titans Technology - 4 Outputs
> Tailor Made OXCO
> Titans Technology
> Independent Power Supply
> Synchronised Isolated Outputs
> Wide Frequency Range
> Low Jitter
--
Descriptions:
> Custom OCXO
> Not an OCXO that anybody can get. Not a fake one that’s just a mass-produced model with the chassis changed. Our custom OCXO is the collaboration of our senior tuner and a big oscillator manufacturer.
> Independent Power Supply
> One more component, one more interference risk. The SC1 uses a low-noise high-current LDO (LDO Noise TYP less than 30μV) for the OCXO power supply, plus the dedicated shielding can for isolation. The sound is pure, transparent and dark-background.
> Synchronized Isolated Output
> The 4 outputs are not simply square wave*2+sine wave*2. We managed to make the phase synchronization of each of the 4 less than 0.00001° when they are isolated from each other. Great for multiple devices connection.
> Wide Frequency Domain & Low Jitter
> The jitter range of the common oscillators is usually 10Hz-100KHz. aune, with years’ experience in audio clock and the innovative technology, achieved less-than-200fs jitter in a wider frequency domain (1Hz-100MHz). The precise audio clock signals can be provided to you in a wider range now.
--
Specifications:
> Output Frequency: 10MHz*4
> Output Power: 10MHz > 7dBm (50Ω)
> Output Waveform: 2*Square wave / 2*Sine wave
> Frequency Accuracy (factory): <±0.02ppm
> Jitter (OXCO output): <200Fs BW 1Hz-1MHz
> Warm-up Time: Basic warm up 5min
> Phase Noise: <-100dBc @ 1Hz offset / <-125dB @ 10Hz offset / <-145dBc @ 100Hz offset / -155dBc @ 1KHz offset / <160dBc @ above 10kHz offset
> Ambient Temperature: Normal functioning: 0°C - 50°C / Recommended: 15°C -35°C
--
