[🎶SG] AUDIO TECHNICA AT-VM510CB (VM510CB) Dual Moving Magnet Cartridge
🎵 OFFICIAL AUDIO TECHNICA DEALER - 1 Year Local Warranty & Aftersales Support
Contact Us:
📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084
📧 Email us @ [email protected]
🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), S(338729) - Demo units available
As per Audio Technica policy, all needle, stylus and cartridges are NOT covered under warranty.
--
AUDIO TECHNICA VM510CB
Dual Moving Magnet Cartridge

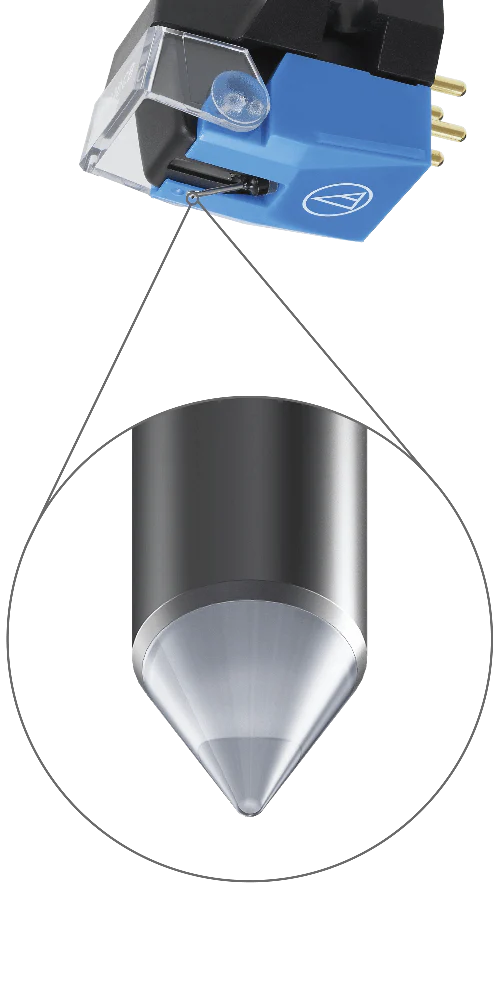

Conical Bonded stylus

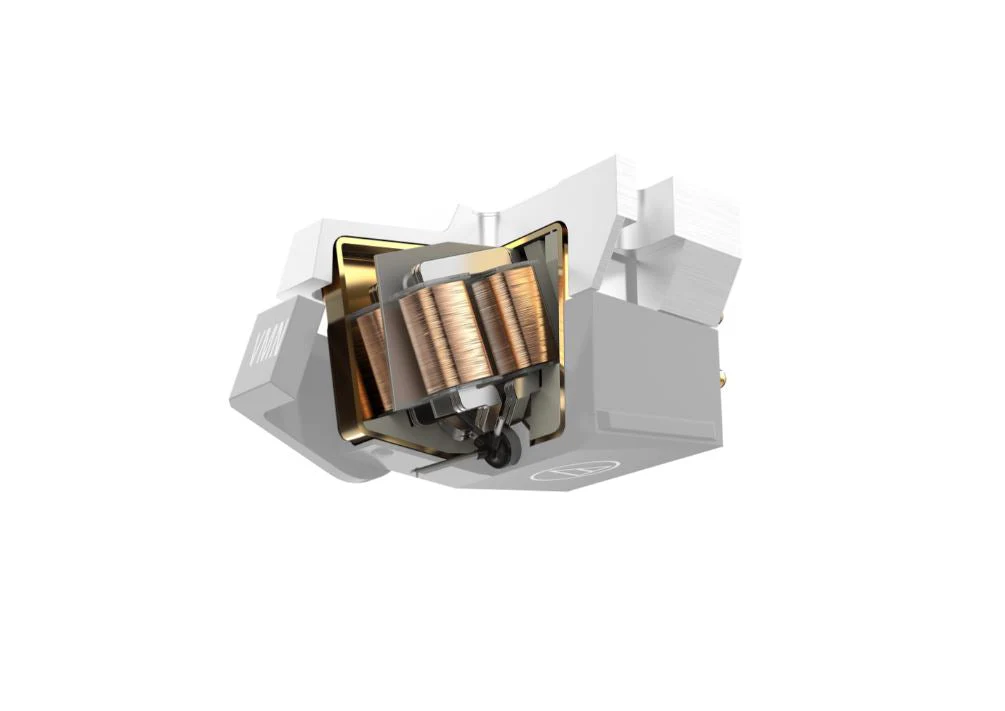

VM type dual magnet system
Para-toroidal coils improve generating efficiency
Aluminium cantilever
Centre shield plate between stereo channels
Durable low resonance polymer housing
--
Descriptions:
The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware.
--
Specifications:
> Frequency Response: 20 - 20,000Hz
> Channel Separation: 25dB (1kHz)
> Vertical Tracking Angle: 23˚
> Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
> Stylus Construction: Bonded Round Shank
> Recommended Load Impedance: 47,000Ω
> Coil Impedance: 2,700Ω (1kHz)
> Output Voltage: 5.0mV (1kHz, 5cm/sec.)
> Output Channel Balance: 1.5dB (1kHz)
> Stylus Shape: Conical Bonded
> Cantilever: Aluminium Pipe
> Static Compliance: 35 x 10-6 cm/dyne
> Dynamic Compliance: 8 x 10-6 cm/dyne (100Hz)
> Mounting: 1/2” centres
> Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
> Recommended Load Capacitance: 100 – 200pF
> Stylus Size: 0.6 mil
> Type: VM Type
> Weight: 6.4g
--
🎵 OFFICIAL AUDIO TECHNICA DEALER - 1 Year Local Warranty & Aftersales Support
Contact Us:
📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084
📧 Email us @ [email protected]
🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), S(338729) - Demo units available
As per Audio Technica policy, all needle, stylus and cartridges are NOT covered under warranty.
--
AUDIO TECHNICA VM510CB
Dual Moving Magnet Cartridge
Conical Bonded stylus
VM type dual magnet system
Para-toroidal coils improve generating efficiency
Aluminium cantilever
Centre shield plate between stereo channels
Durable low resonance polymer housing
--
Descriptions:
The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware.
--
Specifications:
> Frequency Response: 20 - 20,000Hz
> Channel Separation: 25dB (1kHz)
> Vertical Tracking Angle: 23˚
> Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
> Stylus Construction: Bonded Round Shank
> Recommended Load Impedance: 47,000Ω
> Coil Impedance: 2,700Ω (1kHz)
> Output Voltage: 5.0mV (1kHz, 5cm/sec.)
> Output Channel Balance: 1.5dB (1kHz)
> Stylus Shape: Conical Bonded
> Cantilever: Aluminium Pipe
> Static Compliance: 35 x 10-6 cm/dyne
> Dynamic Compliance: 8 x 10-6 cm/dyne (100Hz)
> Mounting: 1/2” centres
> Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
> Recommended Load Capacitance: 100 – 200pF
> Stylus Size: 0.6 mil
> Type: VM Type
> Weight: 6.4g
--
$44.10
Original: $126.00
