AT-UMX3 USB Audio Mixer

> Engineered to the exacting sound-quality standards of a leading microphone manufacturer
> Advanced noise-resistant design
> Equipped with Neutrik XLR/6.3 mm (1/4″) combo microphone jacks, which are renowned for their world-class reliability
> Stable 48 V phantom power supply
> High-performance A/D converter with resolution up to 24 bits/192 kHz
> Plug-and-play connectivity to Windows PC, Mac, smartphones, and tablets
> Supports streaming on major streaming platforms
> Loopback function for live-stream mixing
> Easy-to-understand control panel with independent microphone input, LINE input, and USB input
> Microphone mute function lets you quickly mute unnecessary sounds and focus only on the sound you want to stream
> Microphone monitor mute function allows you to adjust the monitored sound
> Compact size and stability
> Terminals are located at the back of the unit

--
Descriptions:

The recent buzz about streaming from smartphones has sparked interest in starting personal streams. People are excited to create content around their passions—including games, art, music, and education—and interact in real time with other enthusiasts. To support these streaming newcomers, Audio-Technica has designed a compact, feature-rich USB audio mixer. The AT-UMX3 is a great tool for beginners and experienced streamers alike, providing high-quality sound both from your desk and on the move.

With this mixer, you don’t need to think about the equipment settings, which can be confusing for beginners, or install any special drivers. This plug-and-play mixer has two LINE input channels, a Hi-Z input and a stereo input, so you can mix and stream musical instruments with microphone audio. For example, you can stream music by simply connecting a guitar or keyboard. Additionally, the mixer’s Loopback function allows you to mix the input sound with sound played on your device and stream them together. When Loopback is turned on, it is possible to play background music while streaming, or to stream game sounds and voice at the same time.

The AT-UMX3 has all the functions needed for live streaming and is simple to operate even for first-time users. And the compact size doesn’t take up much space on your desk. This is Audio-Technica’s first USB audio mixer for live streaming, developed by our experienced team of microphone designers.

--
Specifications:

> Input terminals:
  > MIC: XLR/TRS combo jack
  > LINE (GUITAR): 6.3mm (1/4”) standard jack (Hi-Z)
  > LINE (KEYBOARD): 6.3mm (1/4”) standard jack, L/MONO and R
  > USB STEREO INPUT

> Output terminals:
  > HEADPHONE OUT: 3.5mm (1/8”) stereo mini jack
  > USB STEREO OUTPUT

> USB: USB2.0, High Speed
> Sampling frequency: Max. 192kHz
> Bit rate: 16 bit / 24 bit
> Phantom power: +48 V

> Power supply:
  > USB-C bus power: 5V, 500mA
  > USB-C (power supply only): 5V, 500mA

> Power consumption: Max. 2.5W
> Frequency response: USB input → monitor output: ±1.5dB (20Hz to 20kHz) (with loopback ON, max. USB input level, and medium monitoring volume (at 1 kHz))

> Supported OS:
  > macOS: macOS Catalina, macOS Big Sur, macOS Monterey, macOS Ventura
  > iOS: 16.4.1
  > iPad OS: 16.4.1
  > Android OS: 10, 11, 12, 13

> Weight: 334g (12oz)
> Dimensions (including protrusions): 127mm(5”)×131mm(5.2”)×44mm (1.7”) (W×D×H)

> Accessories:

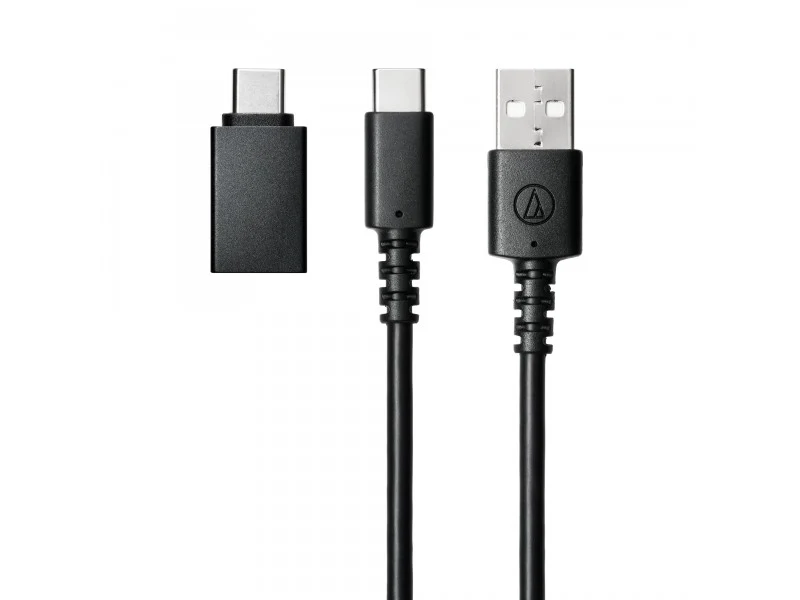

  > USB cable (1.5m (4.9'), USB Type-C to USB Type-A)
  > USB conversion adapter (USB Type-A to USB Type-C)

* For product improvement, the product is subject to modification without notice.

--
