[🎶SG] 7Hz TIMELESS II Upgraded 14.5mm Planar Magnetic Driver IEM
🎵 OFFICIAL 7Hz DEALER - 1 Year Local Warranty & Aftersales Support
Contact Us:
📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084
📧 Email us @ [email protected]
🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), 338729, Singapore
--

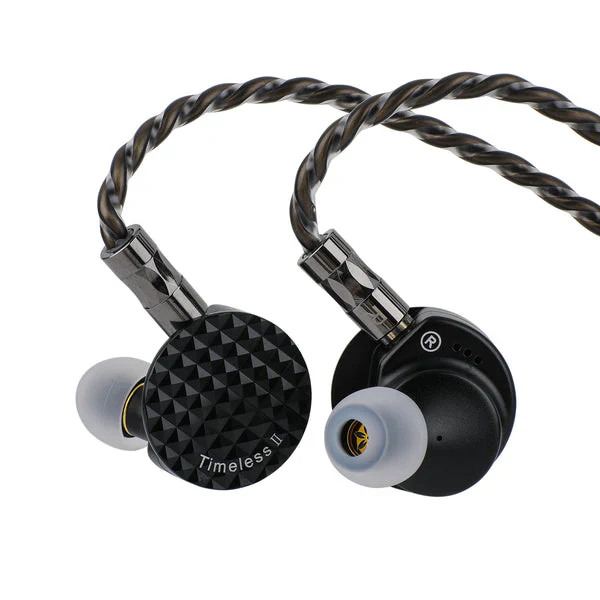

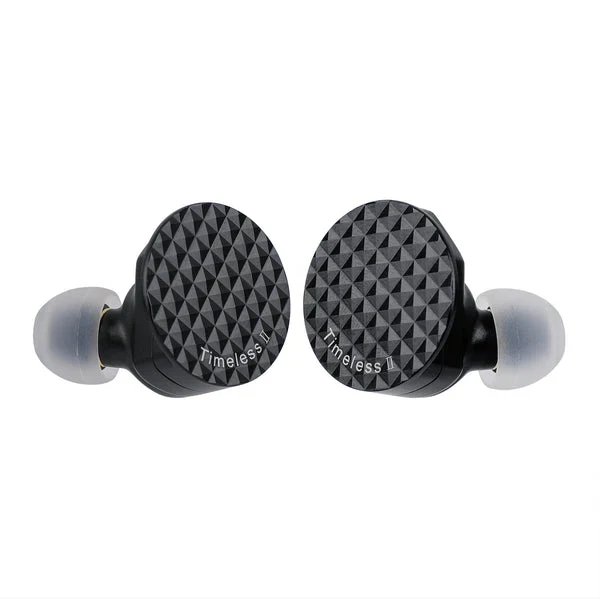

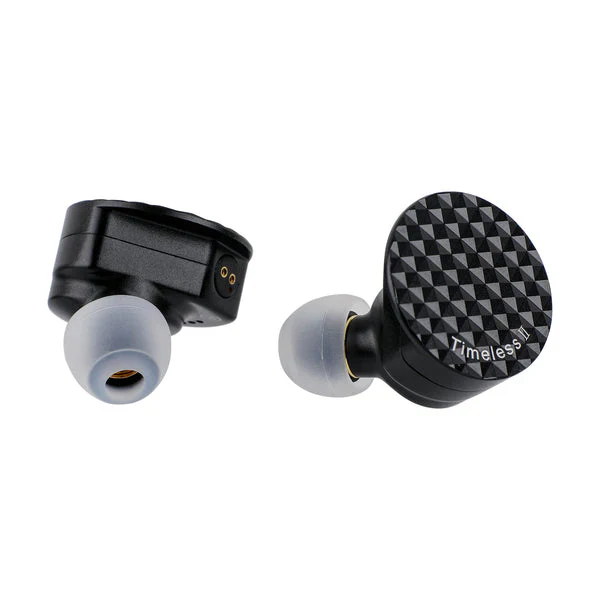

7Hz TIMELESS II
> Upgraded 14.5mm Planar Magnetic Driver IEM
> Tunable Nozzle Design
> Redesigned Driver Enclosure
> Upgraded Detachable Cable
--
Descriptions:
> The 7Hz Timeless II upgrades the original with a 14.5mm planar magnetic driver, featuring the world’s first dual-sided coated diaphragm for enhanced responsiveness. It also introduces a tunable nozzle system, allowing users to adjust sound with different nozzle options. The redesigned 7-layer driver enclosure ensures precise tuning, durability, and stability.
> Upgraded 14.5mm Planar Magnetic Driver
> The original Timeless was one of the benchmark planar driver IEMs when the concept was first started. Since then, we have had much time to re-examine the planar magnetic driver, and innovate more efficient designs. The Timeless II features the latest R&D from our team, with a bigger 14.5mm diaphragm. This new 14.5mm planar diaphragm is the world’s first dual-sided coated diaphragm to be used in the IEM platform. Our in-house coating process layers microns-thick even surface application of specialized silver alloy, which significantly increases the surface tension of the diaphragm. The new diaphragm, which is driven by a strong dual-sided N52 magnet array, is extremely responsive, taking the planar diaphragm concept to a whole new level.
> Tunable Nozzle Design
> The Timeless II also features a new tunable nozzle concept, so that the user can adjust their sound preference. This idea is derived from the concept of speaker phase plugs, which allows the extension and adjustment of ultra-high frequencies. We have designed special nozzle shapes, with different materials for precise tuning of the IEM. The different nozzles all provide unique and effective ways to adjust the Timeless II's sound to fit your music library.
> Redesigned Driver Enclosure
> The Timeless II’s new planar drivers required a redesign of the acoustic driver enclosure to provide a balanced and natural tuning. With a 7-layer design featuring a double acoustic rear venting system and a more secure locking system, the driver can be more precisely tuned, as well as be more durable and stable. The diaphragm was also directly mounted onto its support structures to provide more rigidity and tighter surface tension within the driver.
> Upgraded Detachable Cable
> The Timeless II comes standard with our new upgraded cable. The cable is a 4-core ultra pure 7N single-crystal copper cable, with detachable 0.78mm 2-pin connectors. This configuration was specifically chosen to provide additional body and warmth to the Timeless II’s new driver, while enhancing the transparency and details. With the detachable cable design, the user can change the cable to fit their preference, as well as extend the longevity of their IEM.
--
Specifications:
> THD: <0.2% /1kHz
> Driver: 14.5mm Planar Driver
> Impedance: 15.2 ohms
> Connector Type: 0.78mm 2Pin
> Sensitivity: 108db /V@1kHz
> Weight per earbud: 5g
> Frequency Response: 5-40kHz
Inside the Box
> 7Hz Timeless II
> Carrying Case
> 3.5mm + 4.4mm Combo Adapter
> 10 Pairs of Silicone Ear Tips (S/M/L)
> User Manual
--
